Citation:

Citation Information:

Title: PacIOOS Nearshore Sensor 004: Waikiki Aquarium, Oahu, Hawaii

Date:

Date: July 6, 2009
Date Type: creation (CI_DateTypeCode)

Identifier:

Code: nss_004
Authority: org.pacioos

Responsible Party:

Individual Name: Margaret A. McManus
Organization Name: University of Hawaii at Manoa
Contact:

Contact Address:

Email: mamc@hawaii.edu

Online Resource:

Linkage: https://www.soest.hawaii.edu/oceanography/faculty/mcmanus.html
Protocol: http
Function: information (CI_OnLineFunctionCode)

Contact Role: originator (CI_RoleCode)

Responsible Party:

Organization Name: Pacific Islands Ocean Observing System (PacIOOS)
Contact:

Contact Address:

Email: info@pacioos.org

Online Resource:

Linkage: http://pacioos.org
Protocol: http
Function: information (CI_OnLineFunctionCode)

Contact Role: publisher (CI_RoleCode)

Suggested data citation: McManus, M.A. 2009, updated 2023. PacIOOS Nearshore Sensor 004: Waikiki Aquarium, Oahu, Hawaii. [Indicate temporal subset used.] Distributed by the Pacific Islands Ocean Observing System (PacIOOS). http://pacioos.org/metadata/nss_004.html. Accessed [date].

Abstract:

The nearshore sensors are part of the Pacific Islands Ocean Observing System (PacIOOS) and are designed to measure a variety of ocean parameters at fixed points. nss_004 is located near Waikiki Aquarium on the South Shore of Oahu in the State of Hawaii. The sensor package is mounted to the sea floor at approximately 2.0 meters depth. PacIOOS nearshore sensors monitor coastal water conditions to help provide early indications of potentially polluted run-off from storm drainage, sewage spills, and soil erosion from land-based waterways such as streams and other outflows that lead directly into the ocean.

Purpose:

PacIOOS provides timely, reliable, and accurate ocean information to support a safe, clean, productive ocean and resilient coastal zone in the U.S. Pacific Islands region.

Credit:

The Pacific Islands Ocean Observing System (PacIOOS) is funded through the National Oceanic and Atmospheric Administration (NOAA) as a Regional Association within the U.S. Integrated Ocean Observing System (IOOS). PacIOOS is coordinated by the University of Hawaii School of Ocean and Earth Science and Technology (SOEST).

Point of Contact:

Responsible Party:

Individual Name: Margaret A. McManus
Organization Name: University of Hawaii at Manoa
Contact:

Contact Address:

Email: mamc@hawaii.edu

Online Resource:

Linkage: https://www.soest.hawaii.edu/oceanography/faculty/mcmanus.html
Protocol: http
Function: information (CI_OnLineFunctionCode)

Contact Role: pointOfContact (CI_RoleCode)

Browse Graphic:

View full image

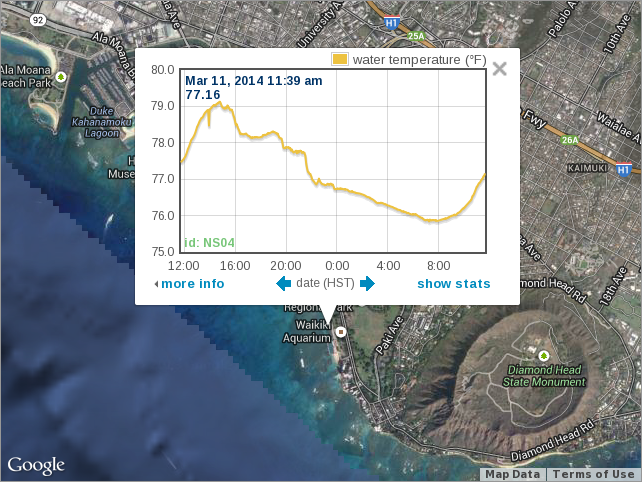

Image File: http://www.pacioos.hawaii.edu/metadata/browse/nss_004.png

File Description:

Sample image.

Browse Graphic:

View full image

Image File: http://www.pacioos.hawaii.edu/metadata/browse/nss_004.2.png

File Description:

Photo of instrument site.

Descriptive Keywords:

Keywords:

Keyword Type: theme (MD_KeywordTypeCode)

Keyword: Earth Science Oceans Ocean Pressure Water Pressure
Keyword: Earth Science Oceans Ocean Temperature Water Temperature
Keyword: Earth Science Oceans Salinity/Density Salinity
Keyword: Earth Science Oceans Water Quality

Keyword Thesaurus:

Citation Information:

Title: GCMD Science Keywords

Keywords:

Keyword Type: theme (MD_KeywordTypeCode)

Keyword: In Situ Ocean-based Platforms OCEAN PLATFORM/OCEAN STATIONS

Keyword Thesaurus:

Citation Information:

Title: GCMD Platform Keywords

Keywords:

Keyword Type: theme (MD_KeywordTypeCode)

Keyword: In Situ/Laboratory Instruments Conductivity Sensors
Keyword: In Situ/Laboratory Instruments Pressure/Height Meters Pressure Sensors
Keyword: In Situ/Laboratory Instruments Profilers/Sounders CTD
Keyword: In Situ/Laboratory Instruments Temperature/Humidity Sensors Temperature Sensors

Keyword Thesaurus:

Citation Information:

Title: GCMD Instrument Keywords

Keywords:

Keyword Type: place (MD_KeywordTypeCode)

Keyword: Continent North America United States Of America Hawaii
Keyword: Ocean Pacific Ocean Central Pacific Ocean Hawaiian Islands Oahu Honolulu
Keyword: Ocean Pacific Ocean Central Pacific Ocean Hawaiian Islands Oahu Waikiki
Keyword: Ocean Pacific Ocean Central Pacific Ocean Hawaiian Islands Oahu Waikiki Aquarium

Keyword Thesaurus:

Citation Information:

Title: GCMD Location Keywords

Keywords:

Keyword Type: project (MD_KeywordTypeCode)

Keyword: PacIOOS Pacific Islands Ocean Observing System

Keyword Thesaurus:

Citation Information:

Title: GCMD Project Keywords

Keywords:

Keyword Type: dataCenter (MD_KeywordTypeCode)

Keyword: PacIOOS Pacific Islands Ocean Observing System

Keyword Thesaurus:

Citation Information:

Title: GCMD Data Center Keywords

Keywords:

Keyword Type: theme (MD_KeywordTypeCode)

Keyword: aggregate_quality_flag
Keyword: attenuated_signal_test_quality_flag
Keyword: climatology_test_quality_flag
Keyword: density_inversion_test_quality_flag
Keyword: depth
Keyword: flat_line_test_quality_flag
Keyword: gap_test_quality_flag
Keyword: gross_range_test_quality_flag
Keyword: latitude
Keyword: location_test_quality_flag
Keyword: longitude
Keyword: multi_variate_test_quality_flag
Keyword: neighbor_test_quality_flag
Keyword: rate_of_change_test_quality_flag
Keyword: sea_water_practical_salinity
Keyword: sea_water_practical_salinity status_flag
Keyword: sea_water_pressure
Keyword: sea_water_pressure status_flag
Keyword: sea_water_temperature
Keyword: sea_water_temperature status_flag
Keyword: spike_test_quality_flag
Keyword: syntax_test_quality_flag
Keyword: time
Keyword: ts_curve_space_test_quality_flag

Keyword Thesaurus:

Citation Information:

Title: CF Standard Name Table v71

Aggregation Information:

Aggregate Dataset Name:

Citation Information:

Title: Pacific Islands Ocean Observing System (PacIOOS)

Association Type: largerWorkCitation (DS_AssociationTypeCode)

Initiative Type: project (DS_InitiativeTypeCode)

Aggregation Information:

Aggregate Dataset Identifier:

Code: TimeSeries
Authority: Unidata Common Data Model

Association Type: largerWorkCitation (DS_AssociationTypeCode)

Initiative Type: project (DS_InitiativeTypeCode)

Resource Constraints:

Legal Constraints:

Use Limitation:

The data may be used and redistributed for free but is not intended for legal use, since it may contain inaccuracies. Neither the data Contributor, University of Hawaii, PacIOOS, NOAA, State of Hawaii nor the United States Government, nor any of their employees or contractors, makes any warranty, express or implied, including warranties of merchantability and fitness for a particular purpose, or assumes any legal liability for the accuracy, completeness, or usefulness, of this information.

Language:

eng

Topic Categories (MD_TopicCategoryCode):

Topic Category: environment
Topic Category: oceans

Extent Information:

Spatial Temporal Extent:

Geographic Element:

Bounding Coordinates:



Westbound Longitude: -157.8228°
Eastbound Longitude: -157.8228°
Southbound Latitude: 21.26587°
Northbound Latitude: 21.26587°

Temporal Element:

Time Period:

Begin Position: July 6, 2009
End Position: October 12, 2024

Vertical Element:

Minimum Value: 2.0 m
Maximum Value: 2.0 m
Coordinate Reference System (CRS): missing

Services:

Service Identification:

Identifier: ERDDAP-tabledap

Service Type: ERDDAP tabledap

Contains Operation:

Operation Name: ERDDAPtabledapDatasetQueryAndAccess

Online Resource:

Linkage: https://pae-paha.pacioos.hawaii.edu/erddap/tabledap/nss_004
Name: ERDDAP-tabledap
Protocol: ERDDAP:tabledap
Description: ERDDAP's tabledap service (a flavor of OPeNDAP) for tabular (sequence) data. Add different extensions (e.g., .html, .graph, .das, .dds) to the base URL for different purposes.
Function: download (CI_OnLineFunctionCode)

Services:

Service Identification:

Identifier: OPeNDAP

Service Type: OPeNDAP

Contains Operation:

Operation Name: OPeNDAPDatasetQueryAndAccess

Online Resource:

Linkage: https://pae-paha.pacioos.hawaii.edu/erddap/tabledap/nss_004
Name: OPeNDAP
Protocol: OPeNDAP:OPeNDAP
Description: An OPeNDAP service for tabular (sequence) data. Add different extensions (e.g., .html, .das, .dds) to the base URL for different purposes.
Function: download (CI_OnLineFunctionCode)

Back to Top

Scope:

dataset

Lineage:

Statement:

2009-07-06T19:58:28Z UH/SOEST/PacIOOS (M.A. McManus) asset deployed.
2016-01-08T22:00:00Z Science variables duplicated into processed and raw copies to accommodate future delayed-mode reprocessing, if any.
2022-03-24T22:19:00Z Data migrated and new ingest and processing code developed. Data reprocessed to incorporate QARTOD real-time quality control flags, delayed-mode quality descriptor flags, and latest IOOS standards. Dataset identifier modified and consolidated from "nss04_agg" (ERDDAP) and "NS04agg" (TDS) to "NSS-004".
2022-11-01T20:52:00Z Dataset identifier modified from "NSS-004" to "nss_004" to satisfy future ERDDAP requirements.
2023-06-13T20:18:00Z Corrected instrument1 value from "Sea-Bird Scientific SBE 16plus V2 SeaCAT CTD" to "Sea-Bird Scientific SBE 37 MicroCAT CTD".

Back to Top

Number Of Dimensions:

4

Axis Dimension Properties:

Dimension:

Dimension Name: column (MD_DimensionNameTypeCode)
Resolution: 0.0 degrees_east

Dimension:

Dimension Name: row (MD_DimensionNameTypeCode)
Resolution: 0.0 degrees_north

Dimension:

Dimension Name: vertical (MD_DimensionNameTypeCode)
Resolution: 0.0 m

Dimension:

Dimension Name: temporal (MD_DimensionNameTypeCode)
Resolution: 4.0 minutes

Back to Top

Coverage Description:

Content Type: physicalMeasurement (MD_CoverageContentTypeCode)

Dimensions:

• crs
• depth
• instrument1
• latitude
• longitude
• platform1
• pressure
• pressure_dm_qd
• pressure_qc_agg
• pressure_qc_atn
• pressure_qc_clm
• pressure_qc_flt
• pressure_qc_gap
• pressure_qc_loc
• pressure_qc_mvr
• pressure_qc_nbr
• pressure_qc_rng
• pressure_qc_rtc
• pressure_qc_spk
• pressure_qc_syn
• pressure_raw
• salinity
• salinity_dm_qd
• salinity_qc_agg
• salinity_qc_atn
• salinity_qc_clm
• salinity_qc_crv
• salinity_qc_din
• salinity_qc_flt
• salinity_qc_gap
• salinity_qc_loc
• salinity_qc_mvr
• salinity_qc_nbr
• salinity_qc_rng
• salinity_qc_rtc
• salinity_qc_spk
• salinity_qc_syn
• salinity_raw
• station_name
• temperature
• temperature_dm_qd
• temperature_qc_agg
• temperature_qc_atn
• temperature_qc_clm
• temperature_qc_crv
• temperature_qc_din
• temperature_qc_flt
• temperature_qc_gap
• temperature_qc_loc
• temperature_qc_mvr
• temperature_qc_nbr
• temperature_qc_rng
• temperature_qc_rtc
• temperature_qc_spk
• temperature_qc_syn
• temperature_raw
• time

Dimension:

Attribute Name: time
Attribute Type: double
Units: seconds since 1970-01-01T00-00-00Z
Descriptor:

Time (time)

Dimension:

Attribute Name: latitude
Attribute Type: float
Units: degrees_north
Descriptor:

Latitude (latitude)

Dimension:

Attribute Name: longitude
Attribute Type: float
Units: degrees_east
Descriptor:

Longitude (longitude)

Dimension:

Attribute Name: depth
Attribute Type: float
Units: m
Descriptor:

Distance below mean sea level (depth)

Dimension:

Attribute Name: station_name
Attribute Type: String
Descriptor:

station

Dimension:

Attribute Name: temperature
Attribute Type: float
Units: Celsius
Descriptor:

water temperature (processed) (sea_water_temperature)

Dimension:

Attribute Name: salinity
Attribute Type: float
Units: 1
Descriptor:

salinity PSU (processed) (sea_water_practical_salinity)

Dimension:

Attribute Name: pressure
Attribute Type: float
Units: dbar
Descriptor:

water pressure (processed) (sea_water_pressure)

Dimension:

Attribute Name: temperature_raw
Attribute Type: float
Units: Celsius
Descriptor:

water temperature (raw) (sea_water_temperature)

Dimension:

Attribute Name: temperature_dm_qd
Attribute Type: int
Units: 1
Descriptor:

water temperature delayed-mode quality descriptor (sea_water_temperature status_flag)

Dimension:

Attribute Name: temperature_qc_agg
Attribute Type: int
Units: 1
Descriptor:

QARTOD Aggregate/Rollup Test (processed) (aggregate_quality_flag)

Dimension:

Attribute Name: temperature_qc_gap
Attribute Type: int
Units: 1
Descriptor:

QARTOD Gap Test (processed) (gap_test_quality_flag)

Dimension:

Attribute Name: temperature_qc_syn
Attribute Type: int
Units: 1
Descriptor:

QARTOD Syntax Test (processed) (syntax_test_quality_flag)

Dimension:

Attribute Name: temperature_qc_loc
Attribute Type: int
Units: 1
Descriptor:

QARTOD Location Test (processed) (location_test_quality_flag)

Dimension:

Attribute Name: temperature_qc_rng
Attribute Type: int
Units: 1
Descriptor:

QARTOD Gross Range Test (processed) (gross_range_test_quality_flag)

Dimension:

Attribute Name: temperature_qc_clm
Attribute Type: int
Units: 1
Descriptor:

QARTOD Climatology Test (processed) (climatology_test_quality_flag)

Dimension:

Attribute Name: temperature_qc_spk
Attribute Type: int
Units: 1
Descriptor:

QARTOD Spike Test (processed) (spike_test_quality_flag)

Dimension:

Attribute Name: temperature_qc_rtc
Attribute Type: int
Units: 1
Descriptor:

QARTOD Rate of Change Test (processed) (rate_of_change_test_quality_flag)

Dimension:

Attribute Name: temperature_qc_flt
Attribute Type: int
Units: 1
Descriptor:

QARTOD Flat Line Test (processed) (flat_line_test_quality_flag)

Dimension:

Attribute Name: temperature_qc_mvr
Attribute Type: int
Units: 1
Descriptor:

QARTOD Multi-Variate Test (processed) (multi_variate_test_quality_flag)

Dimension:

Attribute Name: temperature_qc_atn
Attribute Type: int
Units: 1
Descriptor:

QARTOD Attenuated Signal Test (processed) (attenuated_signal_test_quality_flag)

Dimension:

Attribute Name: temperature_qc_nbr
Attribute Type: int
Units: 1
Descriptor:

QARTOD Neighbor Test (processed) (neighbor_test_quality_flag)

Dimension:

Attribute Name: temperature_qc_crv
Attribute Type: int
Units: 1
Descriptor:

QARTOD T/S Curve/Space Test (processed) (ts_curve_space_test_quality_flag)

Dimension:

Attribute Name: temperature_qc_din
Attribute Type: int
Units: 1
Descriptor:

QARTOD Density Inversion Test (processed) (density_inversion_test_quality_flag)

Dimension:

Attribute Name: salinity_raw
Attribute Type: float
Units: 1
Descriptor:

salinity PSU (raw) (sea_water_practical_salinity)

Dimension:

Attribute Name: salinity_dm_qd
Attribute Type: int
Units: 1
Descriptor:

salinity PSU delayed-mode quality descriptor (sea_water_practical_salinity status_flag)

Dimension:

Attribute Name: salinity_qc_agg
Attribute Type: int
Units: 1
Descriptor:

QARTOD Aggregate/Rollup Test (processed) (aggregate_quality_flag)

Dimension:

Attribute Name: salinity_qc_gap
Attribute Type: int
Units: 1
Descriptor:

QARTOD Gap Test (processed) (gap_test_quality_flag)

Dimension:

Attribute Name: salinity_qc_syn
Attribute Type: int
Units: 1
Descriptor:

QARTOD Syntax Test (processed) (syntax_test_quality_flag)

Dimension:

Attribute Name: salinity_qc_loc
Attribute Type: int
Units: 1
Descriptor:

QARTOD Location Test (processed) (location_test_quality_flag)

Dimension:

Attribute Name: salinity_qc_rng
Attribute Type: int
Units: 1
Descriptor:

QARTOD Gross Range Test (processed) (gross_range_test_quality_flag)

Dimension:

Attribute Name: salinity_qc_clm
Attribute Type: int
Units: 1
Descriptor:

QARTOD Climatology Test (processed) (climatology_test_quality_flag)

Dimension:

Attribute Name: salinity_qc_spk
Attribute Type: int
Units: 1
Descriptor:

QARTOD Spike Test (processed) (spike_test_quality_flag)

Dimension:

Attribute Name: salinity_qc_rtc
Attribute Type: int
Units: 1
Descriptor:

QARTOD Rate of Change Test (processed) (rate_of_change_test_quality_flag)

Dimension:

Attribute Name: salinity_qc_flt
Attribute Type: int
Units: 1
Descriptor:

QARTOD Flat Line Test (processed) (flat_line_test_quality_flag)

Dimension:

Attribute Name: salinity_qc_mvr
Attribute Type: int
Units: 1
Descriptor:

QARTOD Multi-Variate Test (processed) (multi_variate_test_quality_flag)

Dimension:

Attribute Name: salinity_qc_atn
Attribute Type: int
Units: 1
Descriptor:

QARTOD Attenuated Signal Test (processed) (attenuated_signal_test_quality_flag)

Dimension:

Attribute Name: salinity_qc_nbr
Attribute Type: int
Units: 1
Descriptor:

QARTOD Neighbor Test (processed) (neighbor_test_quality_flag)

Dimension:

Attribute Name: salinity_qc_crv
Attribute Type: int
Units: 1
Descriptor:

QARTOD T/S Curve/Space Test (processed) (ts_curve_space_test_quality_flag)

Dimension:

Attribute Name: salinity_qc_din
Attribute Type: int
Units: 1
Descriptor:

QARTOD Density Inversion Test (processed) (density_inversion_test_quality_flag)

Dimension:

Attribute Name: pressure_raw
Attribute Type: float
Units: dbar
Descriptor:

water pressure (raw) (sea_water_pressure)

Dimension:

Attribute Name: pressure_dm_qd
Attribute Type: int
Units: 1
Descriptor:

water pressure delayed-mode quality descriptor (sea_water_pressure status_flag)

Dimension:

Attribute Name: pressure_qc_agg
Attribute Type: int
Units: 1
Descriptor:

QARTOD Aggregate/Rollup Test (processed) (aggregate_quality_flag)

Dimension:

Attribute Name: pressure_qc_gap
Attribute Type: int
Units: 1
Descriptor:

QARTOD Gap Test (processed) (gap_test_quality_flag)

Dimension:

Attribute Name: pressure_qc_syn
Attribute Type: int
Units: 1
Descriptor:

QARTOD Syntax Test (processed) (syntax_test_quality_flag)

Dimension:

Attribute Name: pressure_qc_loc
Attribute Type: int
Units: 1
Descriptor:

QARTOD Location Test (processed) (location_test_quality_flag)

Dimension:

Attribute Name: pressure_qc_rng
Attribute Type: int
Units: 1
Descriptor:

QARTOD Gross Range Test (processed) (gross_range_test_quality_flag)

Dimension:

Attribute Name: pressure_qc_clm
Attribute Type: int
Units: 1
Descriptor:

QARTOD Climatology Test (processed) (climatology_test_quality_flag)

Dimension:

Attribute Name: pressure_qc_spk
Attribute Type: int
Units: 1
Descriptor:

QARTOD Spike Test (processed) (spike_test_quality_flag)

Dimension:

Attribute Name: pressure_qc_rtc
Attribute Type: int
Units: 1
Descriptor:

QARTOD Rate of Change Test (processed) (rate_of_change_test_quality_flag)

Dimension:

Attribute Name: pressure_qc_flt
Attribute Type: int
Units: 1
Descriptor:

QARTOD Flat Line Test (processed) (flat_line_test_quality_flag)

Dimension:

Attribute Name: pressure_qc_mvr
Attribute Type: int
Units: 1
Descriptor:

QARTOD Multi-Variate Test (processed) (multi_variate_test_quality_flag)

Dimension:

Attribute Name: pressure_qc_atn
Attribute Type: int
Units: 1
Descriptor:

QARTOD Attenuated Signal Test (processed) (attenuated_signal_test_quality_flag)

Dimension:

Attribute Name: pressure_qc_nbr
Attribute Type: int
Units: 1
Descriptor:

QARTOD Neighbor Test (processed) (neighbor_test_quality_flag)

Dimension:

Attribute Name: platform1
Attribute Type: String
Descriptor:

platform

Dimension:

Attribute Name: instrument1
Attribute Type: String
Descriptor:

instrument

Dimension:

Attribute Name: crs
Attribute Type: String
Descriptor:

coordinate reference system

Back to Top

Distributor:

Distributor Contact:

Responsible Party:

Organization Name: Pacific Islands Ocean Observing System (PacIOOS)
Contact:

Contact Address:

Email: info@pacioos.org

Online Resource:

Linkage: http://pacioos.org
Protocol: http
Function: information (CI_OnLineFunctionCode)

Contact Role: publisher (CI_RoleCode)

Distributor Formats:

Name: OPeNDAP
Version: DAP/2.0

Distributor Transfer Options:

Online Resource:

Linkage: https://pae-paha.pacioos.hawaii.edu/erddap/tabledap/nss_004.html
Name: Data Subset Form
Protocol: order
Description: ERDDAP's version of the OPeNDAP .html web page for this dataset. Specify a subset of the dataset and download the data via OPeNDAP or in many different file types.
Function: download (CI_OnLineFunctionCode)

Online Resource:

Linkage: https://pae-paha.pacioos.hawaii.edu/erddap/tabledap/nss_004.graph
Name: Make-A-Graph Form
Protocol: order
Description: ERDDAP's Make-A-Graph .html web page for this dataset. Create an image with a map or graph of a subset of the data.
Function: mapDigital (CI_OnLineFunctionCode)

Online Resource:

Linkage: http://pacioos.org/voyager/index.html?b=21.245062,-157.85933,21.286415,-157.78616&o=qual:2::p0nss_004p1
Name: PacIOOS Voyager (Google Maps API)
Protocol: http
Description: This URL provides a viewer and/or data access for this dataset.
Function: download (CI_PresentationFormCode)

Online Resource:

Linkage: http://pacioos.org/water/sensor-waikikiaquarium/
Name: PacIOOS website
Protocol: http
Description: This URL provides a viewer and/or data access for this dataset.
Function: download (CI_PresentationFormCode)

Back to Top

File Identifier:

http://pacioos.org/metadata/iso/nss_004.xml

Language:

eng

Character Set:

UTF8 (MD_CharacterSetCode)

Hierarchy Level:

dataset (MD_ScopeCode)

Hierarchy Level:

service (MD_ScopeCode)

Contact:

Responsible Party:

Individual Name: Margaret A. McManus
Organization Name: University of Hawaii at Manoa
Contact:

Contact Address:

Email: mamc@hawaii.edu

Online Resource:

Linkage: https://www.soest.hawaii.edu/oceanography/faculty/mcmanus.html
Protocol: http
Function: information (CI_OnLineFunctionCode)

Contact Role: pointOfContact (CI_RoleCode)

Date Stamp:

October 13, 2024

Metadata Maintenance Information:

Maintenance And Update Frequency: unknown

Maintenance Note:

This record was created using dataset metadata from ERDDAP.

Metadata Standard Name:

ISO 19115-2 Geographic Information - Metadata Part 2 Extensions for Imagery and Gridded Data

Metadata Standard Version:

ISO 19115-2:2009(E)

Back to Top
